Private Sub FixTimer3_OnTimeOut(ByVal lTimerId As Long)
Dim conODBC As ADODB.Connection
Dim adoRS As ADODB.Recordset Set conODBC = New ADODB.Connection Set adoRS = New ADODB.Recordset
Dim strQuery As String conODBC.ConnectionString = "DSN = test; UID =sa; PWD =sa;" www.plcworld.cn conODBC.Open "test", "sa", "sa"
strQuery = "select * from form" '或者表名FORM或者SQL选择语句
adoRS.Open strQuery, conODBC, adOpenDynamic, adLockPessimistic
adoRS.AddNew
adoRS!一次电流 = readvalue("Fix32.FIX.AR_1.F_CV", 0)
adoRS!一次电压 = readvalue("Fix32.FIX.AR_2.F_CV", 0)
adoRS!二次电流 = readvalue("Fix32.FIX.AR_3.F_CV", 0)
adoRS!二次电压 = readvalue("Fix32.FIX.AR_4.F_CV", 0)
adoRS.Update adoRS.Close conODBC.Close
End Sub
通过ODBC及ADO写数据到ACCESS数据库方滕二：
此方滕设置同上方滕一，只是纾简了代码部分
Private Sub FixTimer3_OnTimeOut(ByVal lTimerId As Long)
Dim conODBC As ADODB.Connection Set conODBC = New ADODB.Connection conODBC.ConnectionString = "DSN = test; UID =sa; PWD =sa;"
conODBC.Open "test", "sa", "sa"
conODBC.Execute "insert into form([value]) values(3433) "
conODBC.Close
End Sub
通过ADO写数据到ACCESS数据库方滕三： 此方滕由于采用了连接字符串，可以免去ODBC设置，纯纹的ADO编程，代码简单，直接 采用SQL语句写数据到ACCESS数据库中。
Private Sub FixTimer3_OnTimeOut(ByVal lTimerId As Long)
Dim conODBC As ADODB.Connection Set conODBC = New ADODB.Connection conODBC.ConnectionString = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=C:\abc. mdb;Persist Security Info=False" '采用连接字符串，可免去ODBC设置
conODBC.Open
conODBC.Execute "insert into form([value]) values(3433) "
conODBC.Close
End Sub
以上三种方滕均可帆3433/454545替换为readvalue("Fix32.FIX.ABC.F_CV", 0)读实时数据 的方滕，实现帆实时数据写到ACCESS。在IFIX3.5/WINDOWS 2000 PROFESSION 带SP4通过 测试。
from https://sites.google.com/site/nyosawu/zi-kong-kai-fa-bei-wang/ifix%E9%80%A3%E6%8E%A5sql%E8%AE%80%E5%AF%AB%E8%B3%87%E6%96%99%E5%92%8C%E8%A3%BD%E4%BD%9Cexcel%E5%A0%B1%E8%A1%A8
IFIX連接SQL讀寫資料和製作excel報表
大概記錄一下流程免忘，原理其實很簡單，都是設定，無限的設定生涯：

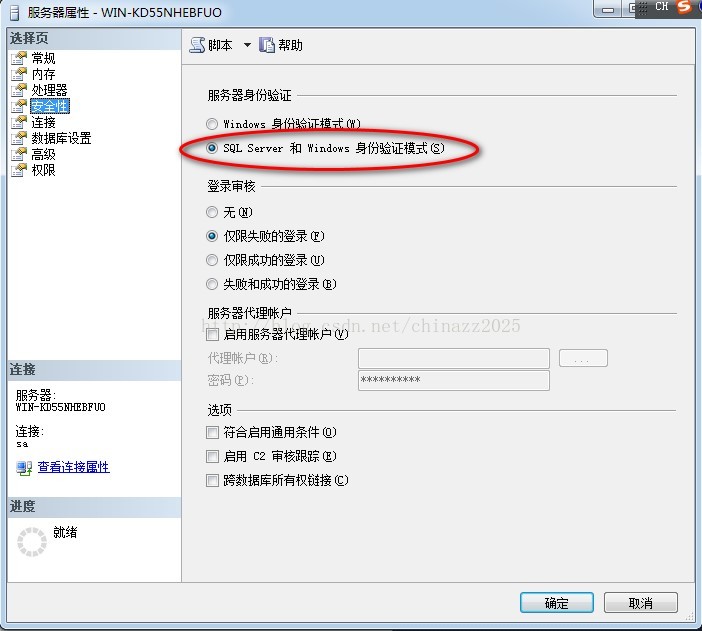

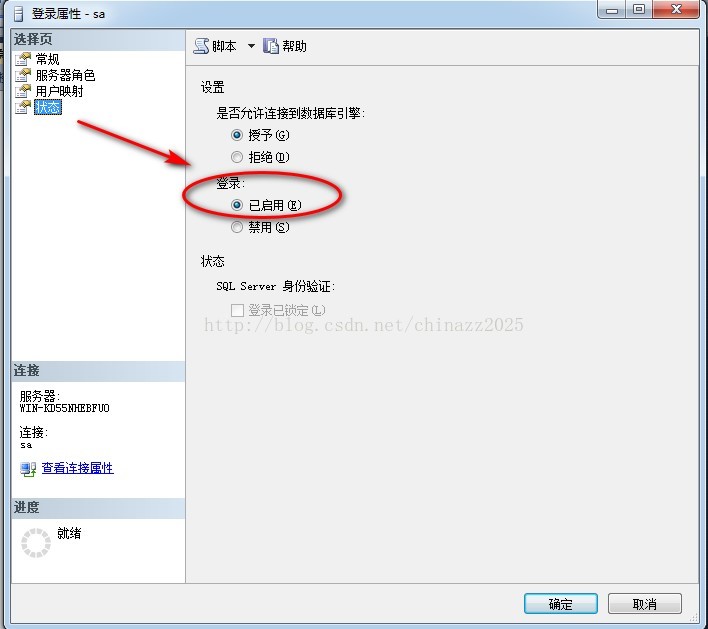

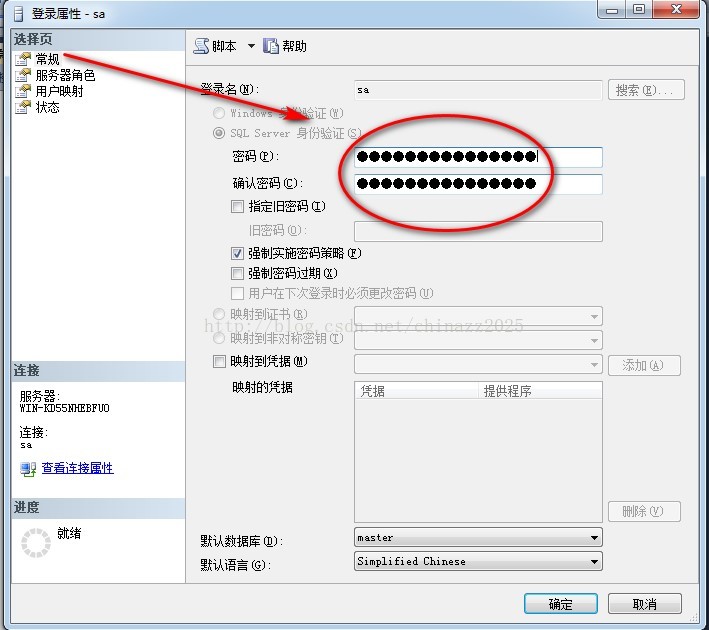

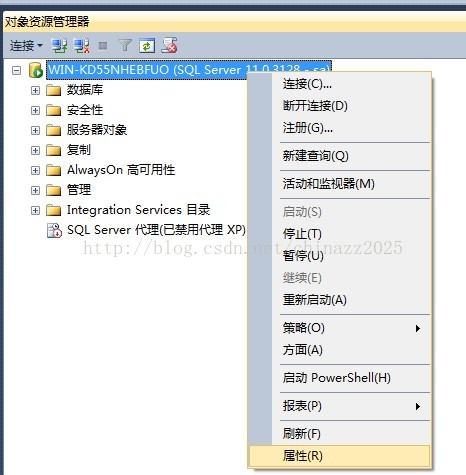

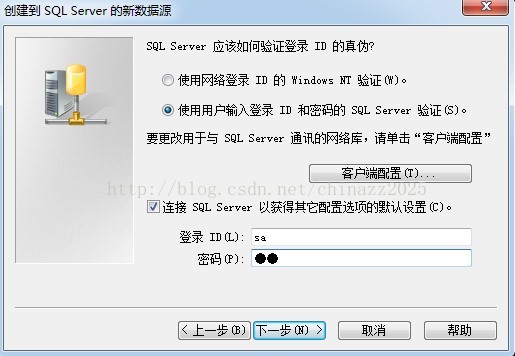

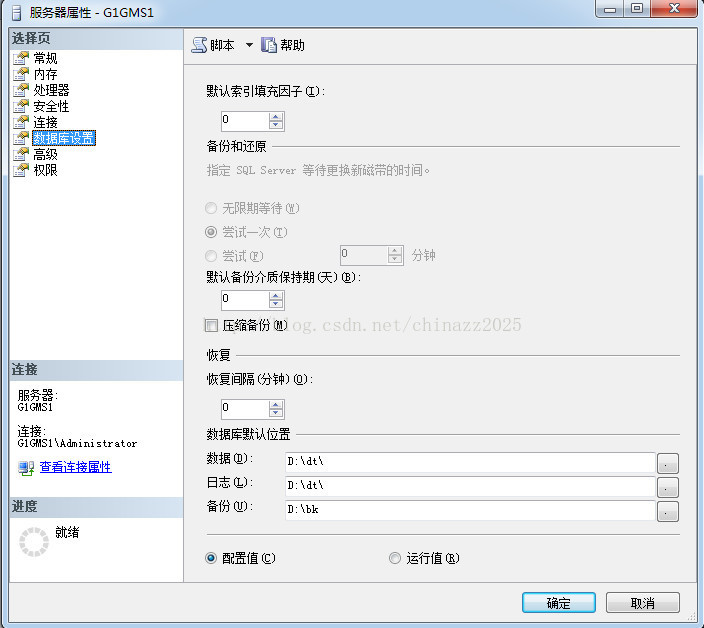

1.最基本的安裝sql，創建管理員，創建資料庫還有設置，本處重點記錄：安裝時選用伺服器驗證登入，密碼要記住，伺服器名要記住，後邊要用上。

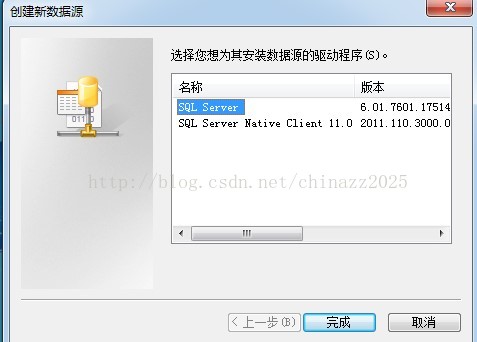

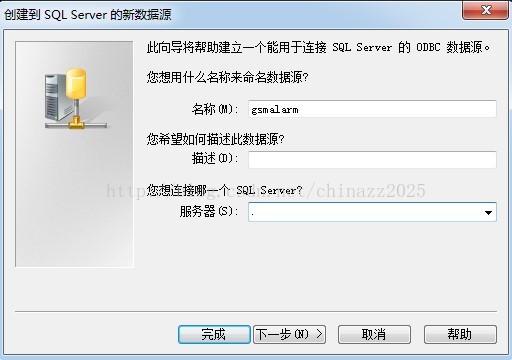

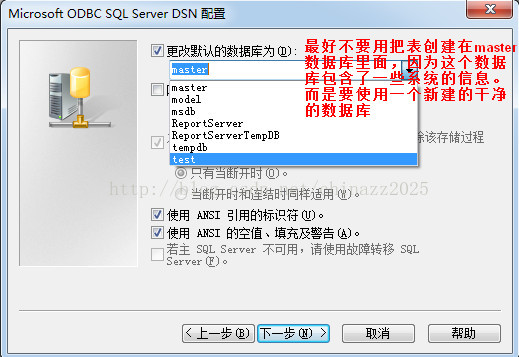

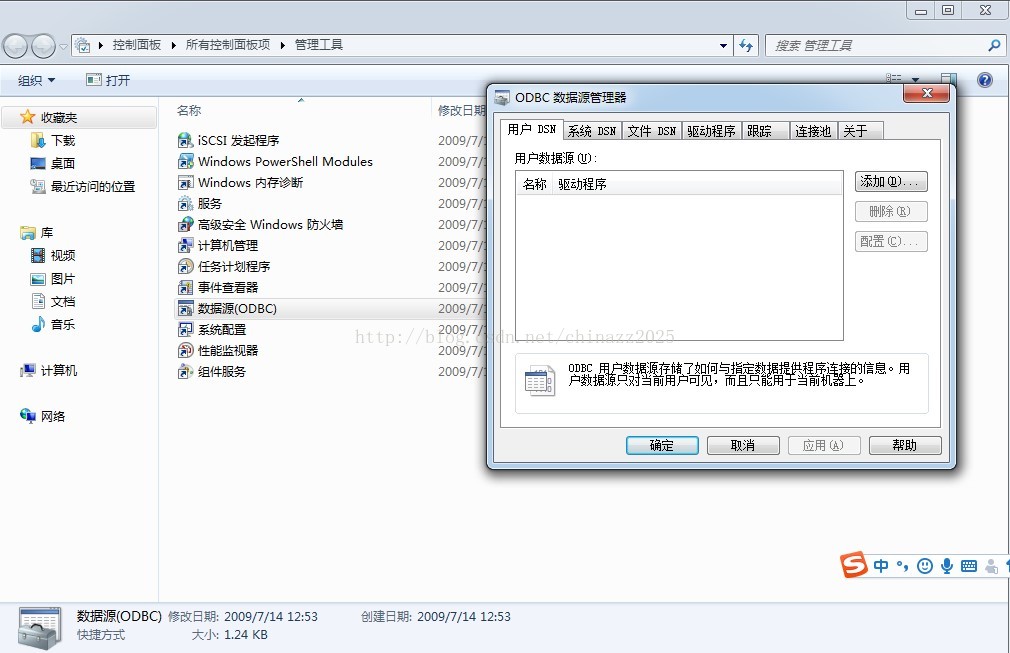

2.打開windows控制台的管理工具，找到obdc數據源，把創建好的sql資料庫連接進去。

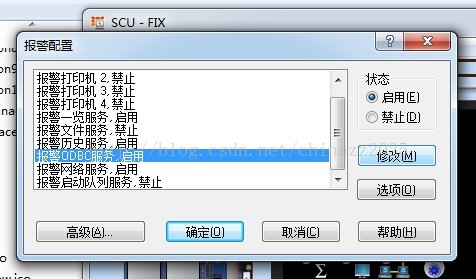

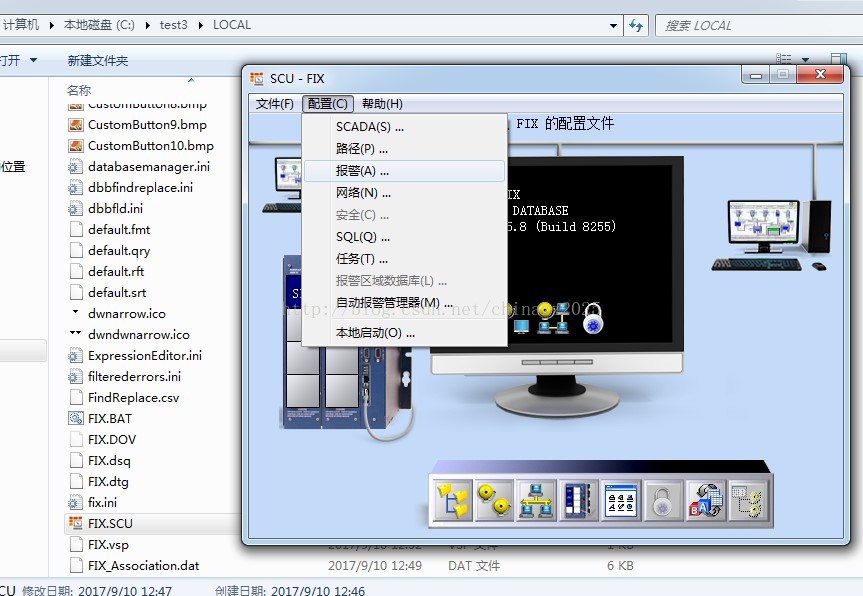

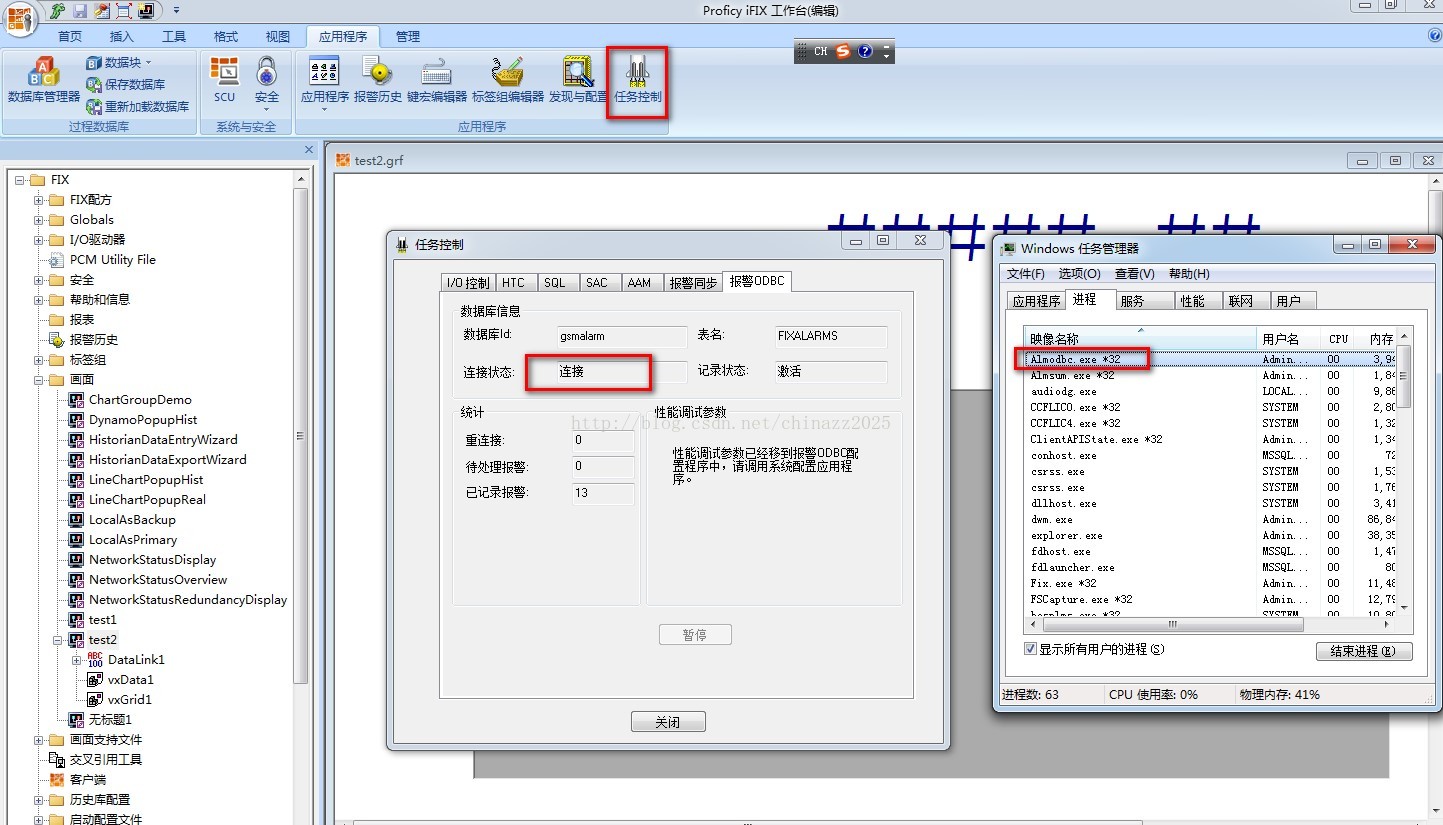

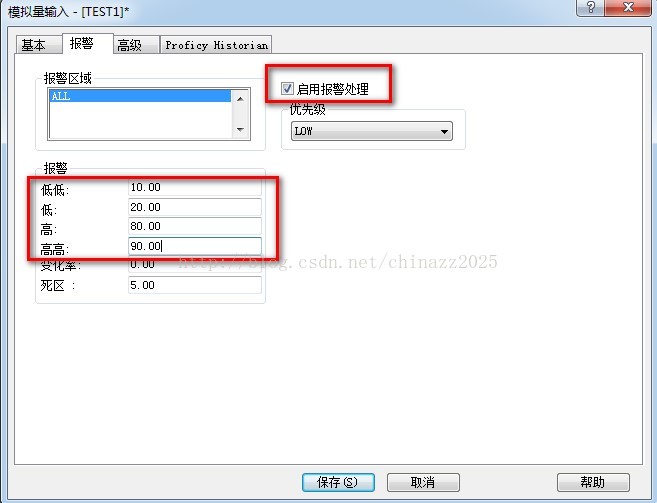

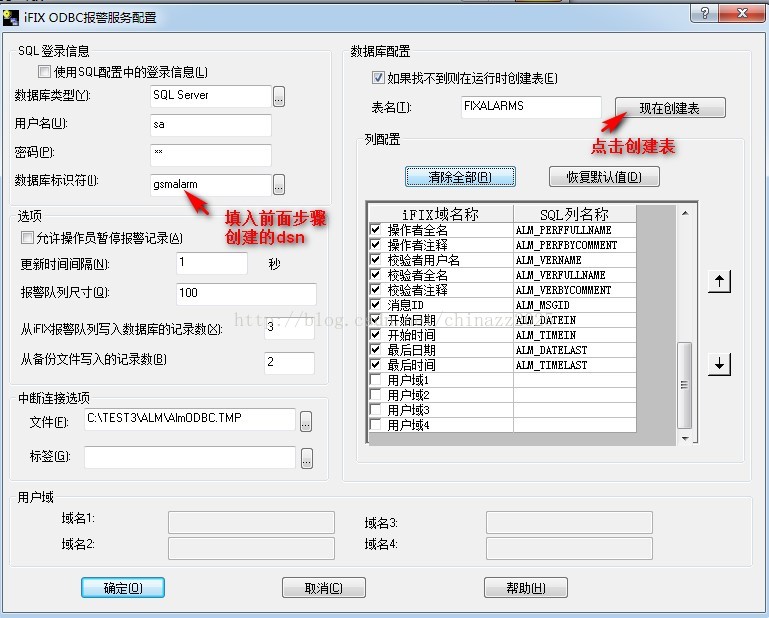

3.在iFix的組態工具裡打開Alarm到obdc的功能，就可以使用了。
原理很簡單 sql ＜＝＞ obdc ＜＝＞ ifix
有空再圖片記錄
沒空記錄可以參考csdn的，寫的很詳細
https://blog.csdn.net/chinazz2025/article/details/78047966?locationNum=10&fps=1

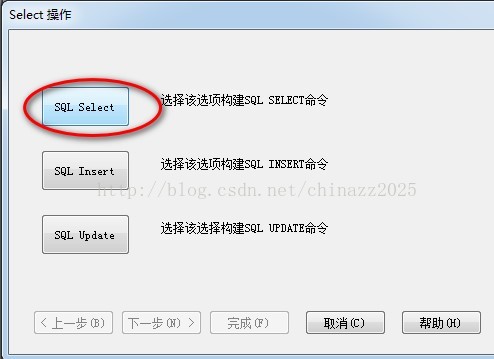

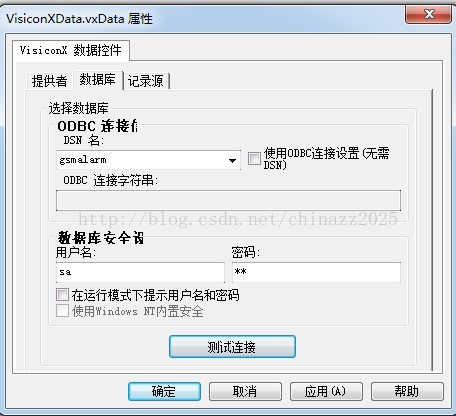

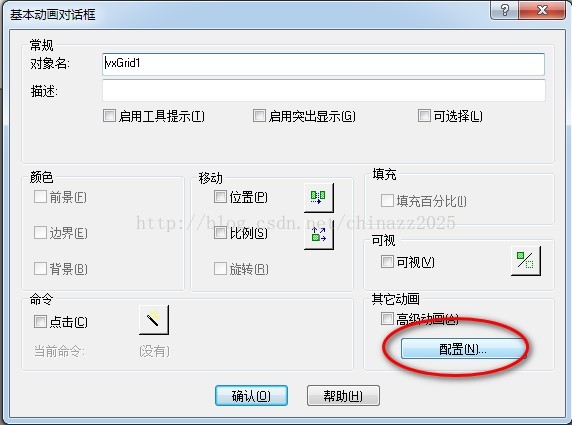

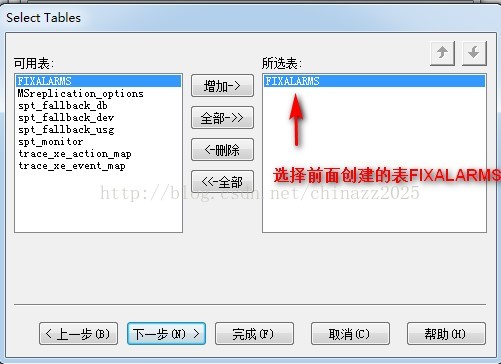

記錄1，使用IFIX中的tag連接sql資料庫：
框架：sql腳本語法寫在表裡，ifix透過tag觸發sql腳本執行取得結果
資料在下方：IFIX中將資料記錄通過ODBC保存到SQL SERVER
記錄2，使用vba直接連sql資料庫：
框架：引用 microsoft activeX Data objects 2.X library；'引用microsoft activeX Data objects recordset 2.X；引用Microsoft excel 15.0 object library

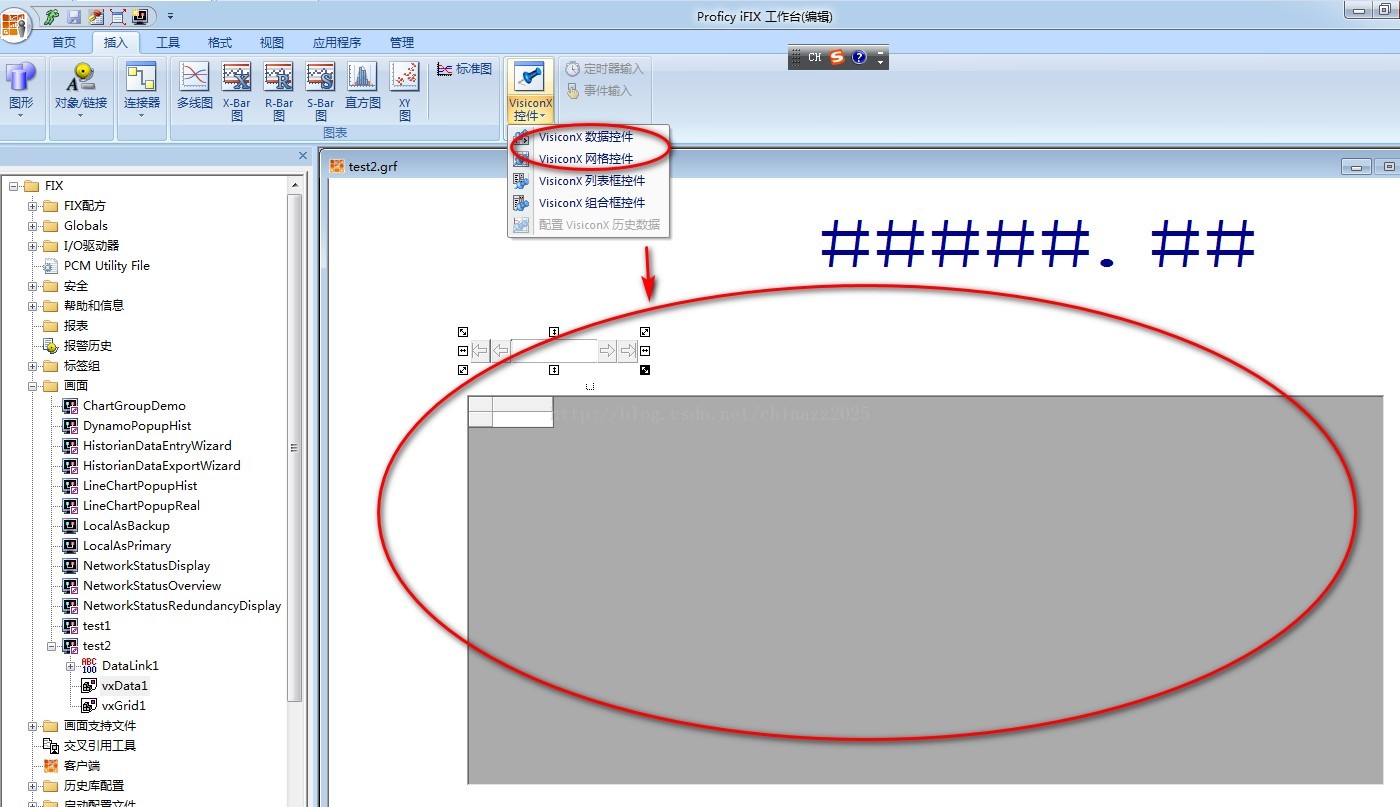

本頁元件有輸入起始日期和結束日期的功能，一個生產報表的按鈕，一個顯示HTML檔的控制項，檔名report.grf 儲存在網盤的原始程式碼目錄
代碼：

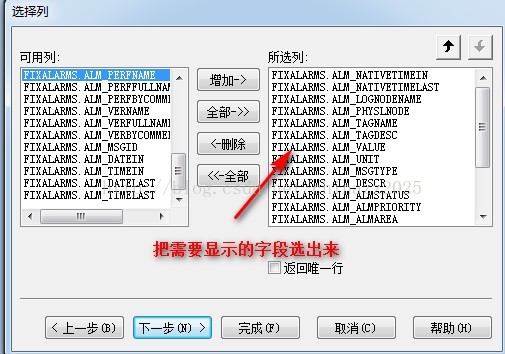

Option Explicit'引用microsoft activeX Data objects 2.X library'引用microsoft activeX Data objects recordset 2.X'引用Microsoft excel 15.0 object library Dim a As String '定義中間變數，用來暫存從資料庫中取出的資料Dim b As StringDim c As StringDim d As StringDim enddayplus1 As IntegerDim rsADO As ADODB.Recordset '定義連接資料庫的ADO變數Dim conn As New ADODB.ConnectionPublic CmdTruck As New ADODB.CommandPublic dbUpdata As New ADODB.CommandPublic rstUpdata As New RecordsetPrivate Sub CommandButton3_Click() '點擊按鈕的回應函數 Fix32.AB_FIX.SDAY.A_CV = Fix32.AB_FIX.Year.A_CV + "-" + Fix32.AB_FIX.Month.A_CV + "-" + Fix32.AB_FIX.Day.A_CV enddayplus1 = Val(Fix32.AB_FIX.EDay.A_CV) + 2 Fix32.AB_FIX.ENDAY.A_CV = Fix32.AB_FIX.EYear.A_CV + "-" + Fix32.AB_FIX.EMonth.A_CV + "-" + Str(enddayplus1) Call showbb '調用顯示報表的函數showbb Call closeDB1 '調用關閉資料庫的函數 closeDB1End SubPrivate Sub showbb() Dim COL1 As String Dim COL2 As String Dim COL3 As String Dim COL4 As String COL1 = "ALM_NATIVETIMEIN" COL2 = "ALM_TAGNAME" COL3 = "ALM_VALUE" COL4 = "ALM_DESCR" Dim Rs As New ADODB.Recordset '定義連接資料庫的ADO變數 openDB1 '打開DB1資料庫，該函數在後面有定義 CmdTruck.ActiveConnection = conn CmdTruck.CommandText = "SELECT ALM_NATIVETIMEIN, ALM_TAGNAME, ALM_VALUE, ALM_DESCR FROM FIXALARMS WHERE ALM_NATIVETIMEIN Between " + "'" + Fix32.AB_FIX.SDAY.A_CV + "'" + " AND " + "'" + Fix32.AB_FIX.ENDAY.A_CV + "'" + " And ALM_TAGNAME! = '' " '按需求生成ADODB.recordset Dim xlApp As Object '定義報表物件 Dim xlBook As Object Dim xlSheet As Object Dim e As String Dim f As String Dim g As String Dim h As String Dim i As Integer i = 2 'ADODB.recordset要寫入EXCEL的ROW數,從ROW2開始寫,ROW1留給中文說明標題了 e = "報警時間" f = "報警點" g = "狀態" h = "說明" 'On Error GoTo errorhandle Set xlApp = New Excel.Application Set xlBook = xlApp.Workbooks.Open(System.ProjectPath & "\app\temp.xls") '打開報表範本此範本可以調整樣式,不要放值就好,輸出的報表就會按設計的樣式輸出 Set xlSheet = xlBook.Worksheets(1) xlApp.DisplayAlerts = False '警告禁用 xlApp.Visible = False 'EXCEL隱藏 xlSheet.Cells(1, 1) = e & "" '第一行的標題文字說明 xlSheet.Cells(1, 2) = f & "" xlSheet.Cells(1, 3) = g & "" xlSheet.Cells(1, 4) = h & "" Set Rs = CmdTruck.Execute '執行SQL語句生成ADODB.RecordSet While (Not Rs.EOF) '只要不是指向ADODB.RecordSet最後一筆資料將讀出來的數據傳給變數a、b、c、d a = Rs(COL1) b = Rs(COL2) c = Rs(COL3) d = Rs(COL4) xlSheet.Cells(i, 1) = a & "" '將變數的值寫到對應excel的儲存格 xlSheet.Cells(i, 2) = b & "" xlSheet.Cells(i, 3) = c & "" xlSheet.Cells(i, 4) = d & "" Rs.MoveNext '指向下一條ROW i = i + 1 Wend xlSheet.SaveAs System.ProjectPath & "\app\report.htm", FileFormat:=xlHtml '工作表另存為html xlSheet.SaveAs System.ProjectPath & "\app\report.xls" '工作表另存為xls xlApp.DisplayAlerts = True '警告使能 xlApp.Quit Me.WebBrowser1.Navigate System.ProjectPath & "\app\report.htm" '在WebBrowser控制項上顯示報表 xlApp.Quit Set xlSheet = Nothing '釋放記憶體 Set xlBook = Nothing Set xlApp = Nothing Set CmdTruck = Nothing Set Rs = NothingExit Suberrorhandle: MsgBox "報表生成錯誤！", vbOKOnly + vbInformation, "信息..." Set xlSheet = Nothing '釋放記憶體 Set xlBook = Nothing Set xlApp = Nothing End SubPublic Sub openDB1() '定義打開資料庫的函數openDB1 If conn.State <> adStateOpen Then With conn .ConnectionString = "Driver={SQL Server};Server=127.0.0.1;Database=msdb;Uid=sa;Pwd=123456789;" '連接資料來源的相關資訊 .ConnectionTimeout = 30 .Mode = adModeReadWrite .Open End With End IfEnd SubPublic Sub closeDB1() '定義關閉資料庫的函數closeDB1 If conn.State = adStateOpen Then conn.Close End IfEnd Subfrom http://fs.gongkong.com/files/technicalData/201302/2013021815582300001.pdf
iFix 中实现 EXCEL 报表 在 VBA 中引用 Microsoft Excel 11.0 Object Library 和
Microsoft ADO 6.0 Library。在画面中添加个按钮。复制以下代码： Option Explicit Dim rsADO As ADODB.Recordset Dim cnADO As ADODB.Connection Private Sub Command1_Click() Dim StrDir As String StrDir = "E:\" Dim i As Long Dim Sql As String Sql = "SELECT * FROM THISNODE" Set cnADO = New ADODB.Connection Set rsADO = New ADODB.Recordset cnADO.ConnectionString = "Provider = Microsoft OLE DB Provider for ODBC Drivers;DSN=FIX Dynamics Real Time Data;UID=;PWD=" cnADO.Open rsADO.CursorLocation = adUseClient rsADO.Open Sql, cnADO, adOpenDynamic, adLockUnspecified, -1 If rsADO.RecordCount <= 0 Then MsgBox "无数据！", vbOKOnly + vbInformation, "信息..." Set cnADO = Nothing Set rsADO = Nothing Exit Sub End If Dim xlApp As Object Dim xlBook As Object Dim xlSheet As Object Set xlApp = New Excel.Application xlApp.DisplayAlerts = False xlApp.Visible = False Set xlBook = xlApp.Workbooks.Open(StrDir & "\报表.xls") Set xlSheet = xlBook.Worksheets(1) For i = 1 To rsADO.RecordCount xlSheet.Cells(i, 1) = rsADO.Fields(1).Value & "" 杭州集益科技有限公司 GE FANUC最大分销商 地址：杭州市文一路66号 电话：0571－88227048 杭州集益科技有限公司 GE FANUC最大分销商 地址：杭州市文一路66号 电话：0571－88227048 xlSheet.Cells(i, 2) = rsADO.Fields(2).Value & "" xlSheet.Cells(i, 3) = rsADO.Fields(3).Value & "" xlSheet.Cells(i, 4) = rsADO.Fields(4).Value & "" Next i xlApp.Visible = True xlApp.DisplayAlerts = False Set xlSheet = Nothing Set xlBook = Nothing Set xlApp = Nothing Set cnADO = Nothing Set rsADO = Nothing End Sub 注意：1.iFix 历史数据库只支持读 90 天的数据，在 SQL 语句中限定时间即可。 2.也可以读取其他数据源的数据，如 ACCESS、SQL SERVER 等，只要改 一下 ConnectionString。 3. 连接字符串 "Provider=Microsoft.Jet.OLEDB.4.0;Data Source="C:\Test.mdb";Persist Security Info=False" "Provider=SQLOLEDB.1;Server="192.168.0.10";DataBase="NorthWind"; UID="sa";PWD="
from https://blog.csdn.net/chinazz2025/article/details/78047966?locationNum=10&fps=1

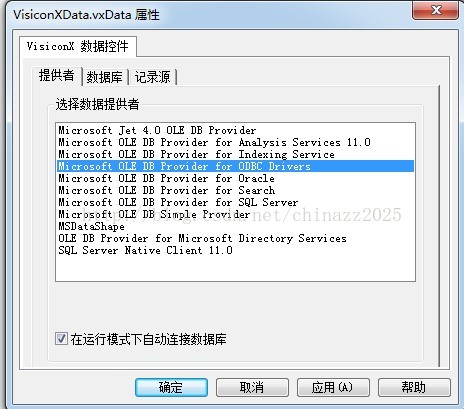

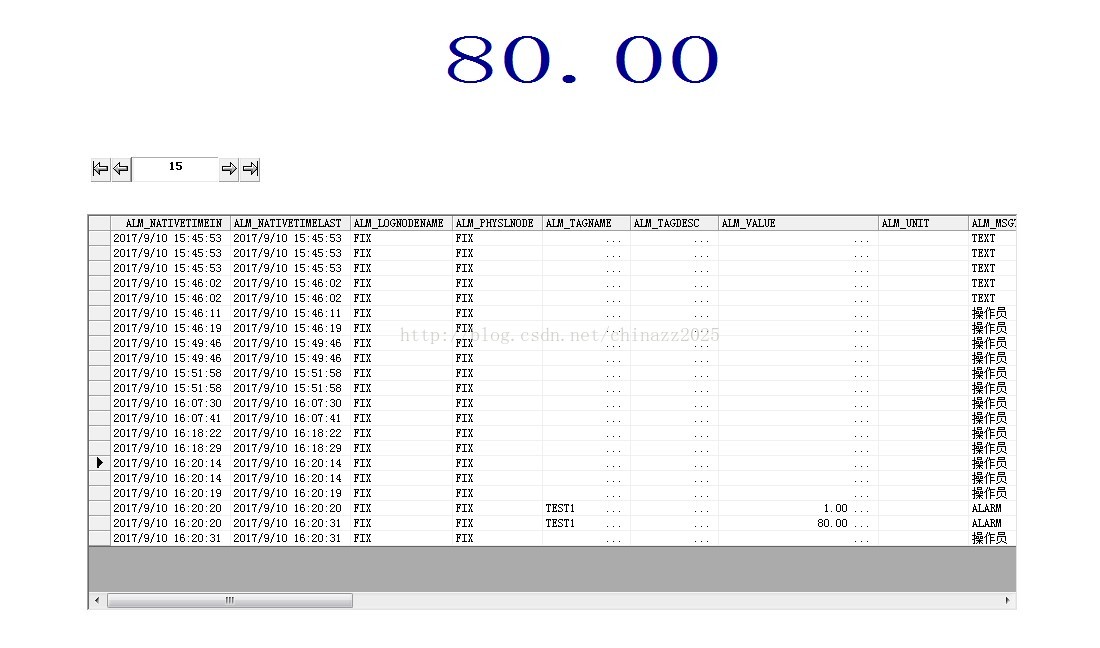

ifix5.8历史报警-保存历史报警到sqlserver2012
